LOAD CAPACITY 10,000
TRAVEL SPEED (FULL LOAD) 28.4km/h
VOLTAGE 24V
FUEL TYPE Diesel
LENGTH TO WORKFACE 4,265mm
MAST LOWERED HEIGHT 2,850mm
OVERALL WIDTH 2,265mm

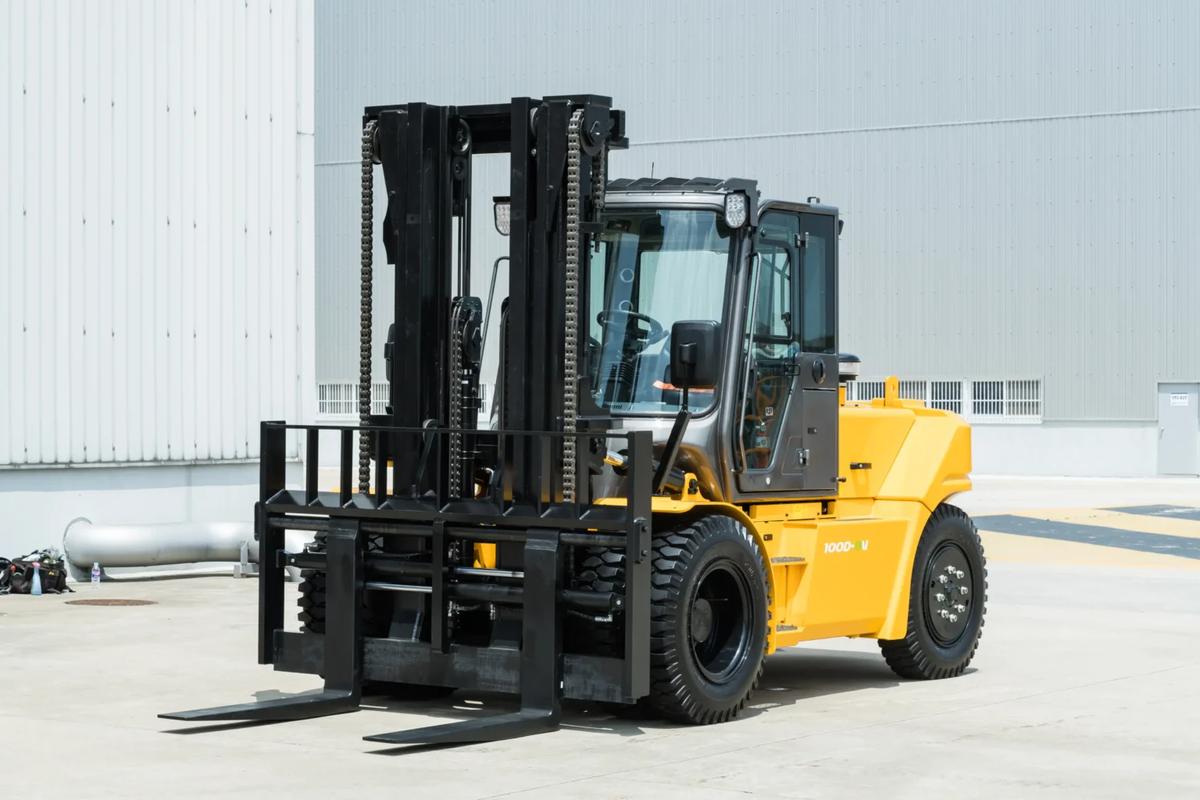

100D-9 is an innovative product that can reshape the market with its optimum fuel efficiency that satisfies Tier 3 Regulations, powerful performance, differentiated convenience, and convenient maintenance. ECO-FRIENDLY CUMMINS F SERIES ENGINE
Cummins QSF Series Engine is globally mounted in heavy equipment and complies with Tier 3 Regulations. Its powerful torque property in mid-/low-speed sections shows excellent fuel efficiency in rapid and efficient complex work and heavyduty traction work. INNOVATIVE REDUCTION OF OPERATING EXPENSES
With displacement optimized for forklifts and high torque in mid/low-speed sections, 100D-9V offers higher fuel efficiency than 80D-9. KESSLER DRIVE AXLE (D41)
The D41 drive axle of a German heavy equipment company Kessler is mounted. This drive axle contains semi-permanent wet disc brake and SAHR caliper-type auto-parking brake. ENGINE OUTPUT SELECTION BUTTON
PWR/STD button – STD mode is set to 80% output of PWR mode and can be selected according to the work conditions.
